Securing front apron at the sides

  1. Tighten fastening screws -1-  at the sides of the front apron -2-  . → : 2.8 Nm (2 ftlb.)

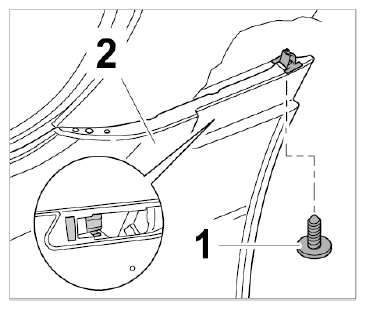

    Fig 1: Securing Front Apron At Sides
    G09824734Courtesy of PORSCHE CARS NORTH AMERICA, INC.
