Locking plug connection for direction indicator light

  1. Connect plug connection for direction indicator light -1-  in the left wheel housing area -arrows-  until it engages securely.

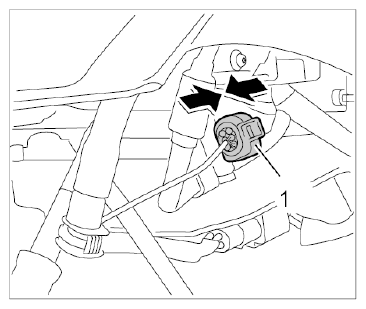

    Fig 1: Locking Plug Connection For Direction Indicator Light
    G09824735Courtesy of PORSCHE CARS NORTH AMERICA, INC.
