Locking hose for headlight cleaning system

Information

• Only for vehicles with headlight cleaning system.

1. Connect the hose -1-  (-arrows A-  ) until the lock -2-  engages securely.

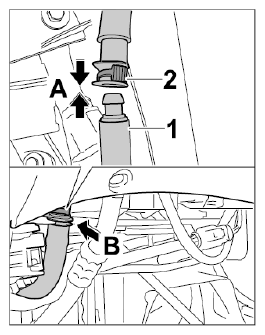

   Fig 1: Locking Hose For Headlight Cleaning System

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Press hose -1-  into the body in the left wheel housing area -arrow B-  .
