Locking front apron plug connection

  1. Connect the front apron plug connection -1-  in the right wheel housing area -arrow A-  until it engages securely.

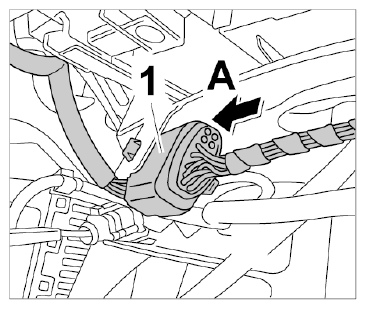

    Fig 1: Locking Front Apron Plug Connection
    G09824737Courtesy of PORSCHE CARS NORTH AMERICA, INC.
