Removing the front bumper

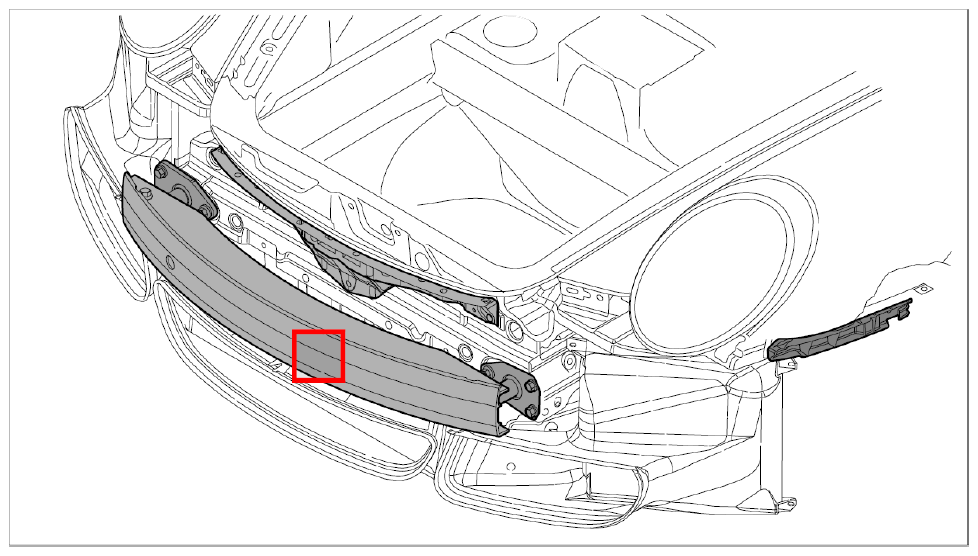

Fig 1: Overview Of Front Bumper
G09824708Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  and remove bumper -2-  .

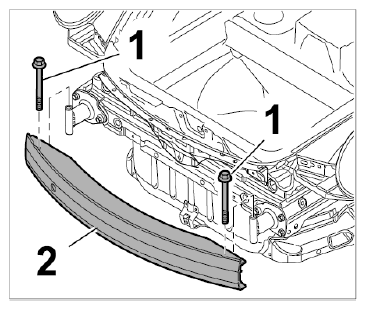

    Fig 2: Identifying Front Bumper And Fastening Screws
    G09824709Courtesy of PORSCHE CARS NORTH AMERICA, INC.
