Home >> Porsche >> 2011 >> 911 Speedster >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> 63 - Bumpers -- CARRERA (997) >> WM 631019 Removing And Installing Front Bumper (All Models) >> Removing front bumper >> Removing clamping pieces

Removing clamping pieces

  1. Unscrew fastening screws -2-  and slide the clamping pieces (USA version) -1a-  or (Canada version) -1b-  down sideways off the front bumper -3-  .

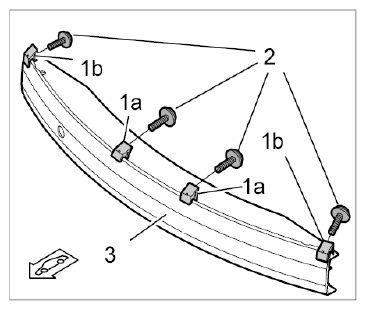

    Fig 1: Removing Clamping Pieces
    G09824711Courtesy of PORSCHE CARS NORTH AMERICA, INC.
