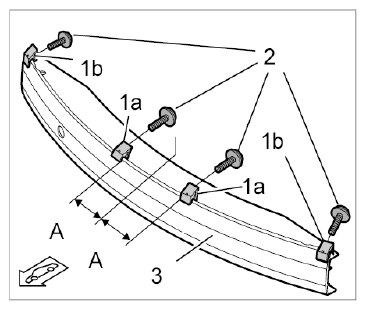

Installing clamping pieces
- Push clamping pieces (USA version) -1a-
or (Canada version) -1b-
sideways onto the front bumper -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Adjust clamping pieces (USA version) -1a-
.
- 2.1. Determine the centre of the front bumper -3-
.
- 2.2. Position clamping pieces (USA version) -1a-
with gaps of -A-
. → Gap dimension: 160 mm+1 mm
- Adjust clamping pieces (Canada version) -1b-
.
- 3.1. Position clamping pieces (Canada version) -1b-
flush with the outer edge of the front bumper -3-
.
- Secure clamping pieces (USA version) -1a-
(Canada version) -1b-
with the fastening screws -2-
to the front bumper -3-
. → Tightening torque: 23 Nm (17 ftlb.)
