Processing Structural Body Adhesive

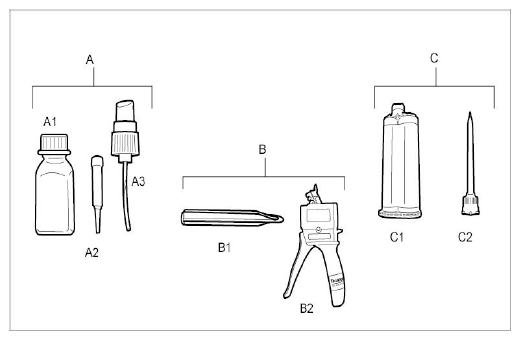

Fig 1: Identifying Tools And Materials For Structural Bonding
G09831688Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Item Designation Source Explanation
-A-  Primer  →
-B-  Applicator gun  →
-C-  Betamate 2096 Adhesive Set  →
Item Designation
-B1-  Piston rod
-B2-  Gun grip
-C1-  Double cartridge
-C2-  Processing nozzle
