2-Component SIP

Information

Use the primer within 8 hours. Apply a thin, even coat to the bonded flanges and remove excess primer. Protect surfaces you have already primed from dirt and soiling. Otherwise, the bonded joint may be defective.

Information

• Primed surfaces can be exposed for up to 3 days before undergoing further processing.
• Make sure that the surfaces are not contaminated by environmental influences.
• If the primer is left exposed for more than 3 days, it must be removed and re-applied.
• For the reasons specified above, we recommend that body parts are bonded immediately after applying the primer.

1. Prepare bonded flanges for bonding.
2. Open bottle for component A.

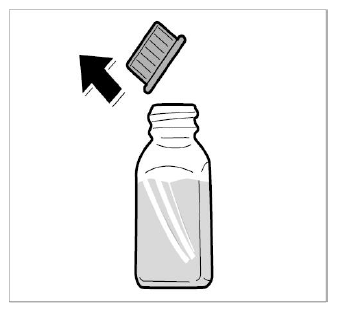

   Fig 1: Opening Bottle

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Fill bottle completely with component B.
   Fig 2: Filling With Component B

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Screw on spray head.
   Fig 3: Screwing On Spray Head

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Mix components together by shaking vigorously.

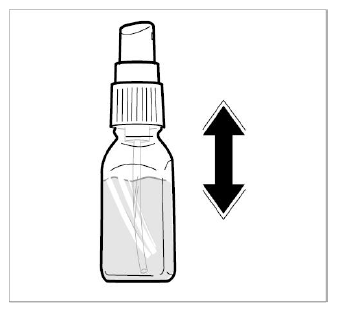

   Fig 4: Mixing Components

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Clean adhesive flange with isopropyl and allow it to flash off.
7. Spray on primer in the area around the adhesive flange.
   1. 7.1. Process mixed primer within eight hours; do not keep any leftover primer.

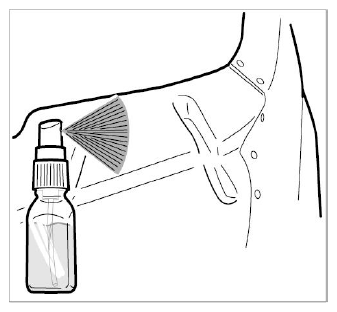

      Fig 5: Applying Primer

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

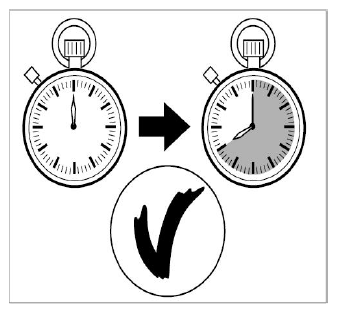

      Fig 6: Identifying Working Time Of 2-Component Sip

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Check primer application.

   Bonded flanges are coated evenly with primer: result is OK.

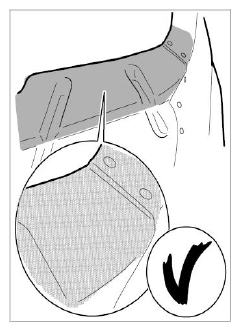

   Fig 7: Primer Application OK

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Remove excess primer with a clean, dry cloth.

   A thin, violet-colored coating of primer is sufficient for the bonded flanges.

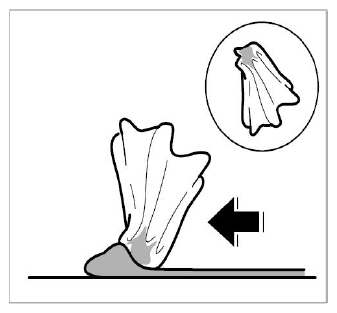

   Fig 8: Removing Excess Primer

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adhesive flanges are not evenly coated (droplet formation):

   result is not OK.

   Using wet-sandpaper (approx. 200 grain) or abrasive fabric, rub in the primer film while it is still damp on the flange area until an even application of primer is obtained.

   If an even application of primer is not obtained, the bonded flange must be completely cleaned, sanded and primed once again.

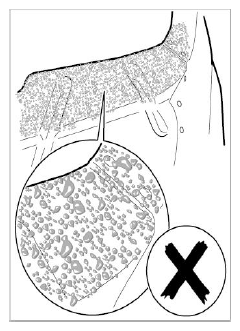

   Fig 9: Primer Application Incorrect

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Dry primer.
   1. 9.1. Allow primer to flash off; it must be dust-dry before any adhesive is applied.

      Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
      Primer		Flash-off time	5 min

10. Process adhesive.
