Bottom Of Rear End, Layout Plan

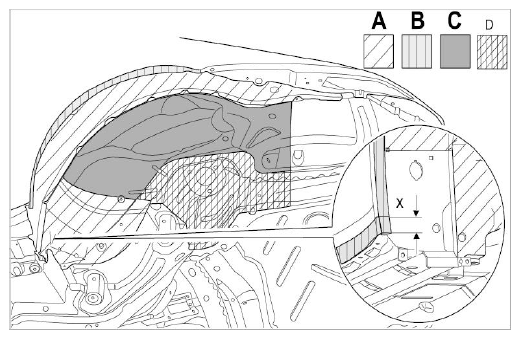

Fig 1: Bottom Of Rear End Layout Plan
G09831649Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 0.2 mm to 0.4 mm
  2. 0.5 mm to 0.7 mm
  3. 1 mm to 1.3 mm
  4. 0.4 mm to 0.6 mm
  1. X  - 32 mm
