Metalworking Tools

Electrical equipment

Information

• Detailed and additional information about tools and equipment can be found in the "Workshop Equipment" Information.

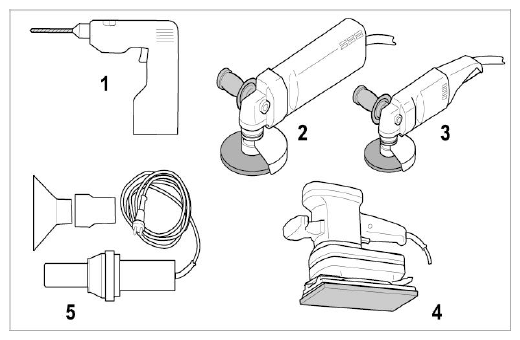

  Fig 1: Identifying Electrical Equipment

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Drill
2. Angle Grinder, Large
3. Angle Grinder, Small
4. Sander
5. Hot-Air Gun

   Mechanical equipment

   Information

   • Detailed and additional information about tools and equipment can be found in the "Workshop Equipment" Information.

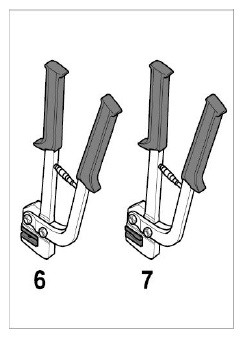

     Fig 2: Mechanical Equipment

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Hole Punch
7. Edge Setter

   Compressed-Air Equipment

   Information

   • Detailed and additional information about tools and equipment can be found in the "Workshop Equipment" Information.

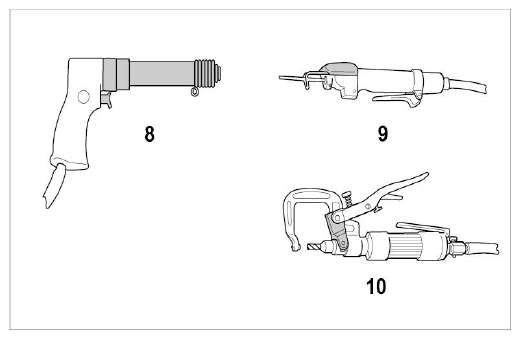

     Fig 3: Identifying Compressed-Air Equipment

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Air Chisel
9. Body Saw
10. Spot-Weld Remover

    Welding Equipment

    Information

    • Detailed and additional information about tools and equipment can be found in the "Workshop Equipment" Information.

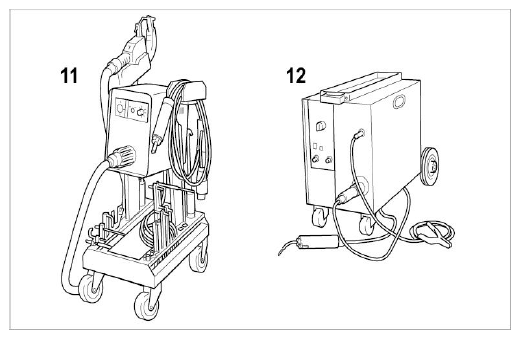

      Fig 4: Identifying Welding Equipment

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Spotweld Device And Multispot Metalworking Tool
12. MIG Welder
