WM 5X00IN Diagram: Plug Plan (All Models)
>>
Diagram: Plug Plan
>>
Top Of Rear End
Top Of Rear End

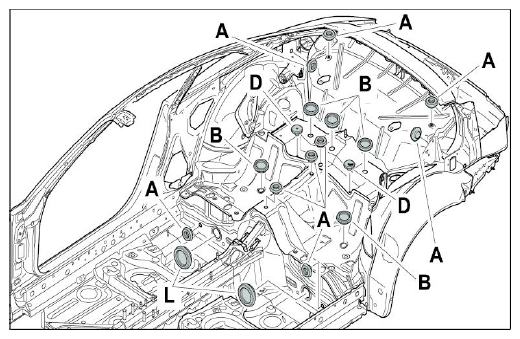

Fig 1: Identifying Top Of Rear End Grommet Hole
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rubber grommet hole Ø 20 mm
Rubber grommet hole Ø 30 mm
Plug hole Ø 10 mm
Plug hole Ø 55 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
