Bottom Of Lower Side Member And Floor

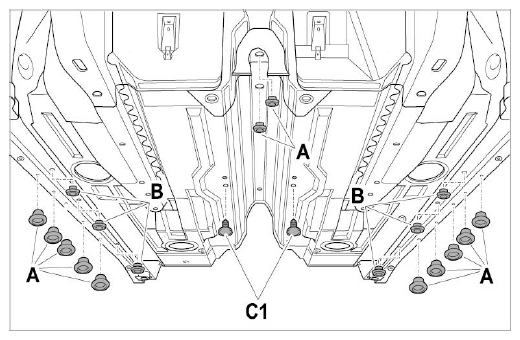

Fig 1: Identifying Bottom Of Lower Side Member And Floor Plugs
G09831640Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Cap hole Ø 15 mm
  2. Cap hole Ø 20 mm
  1. C1 - Plug hole (only rear-wheel drive) Ø 10 mm
