Bottom Of Front Of Vehicle

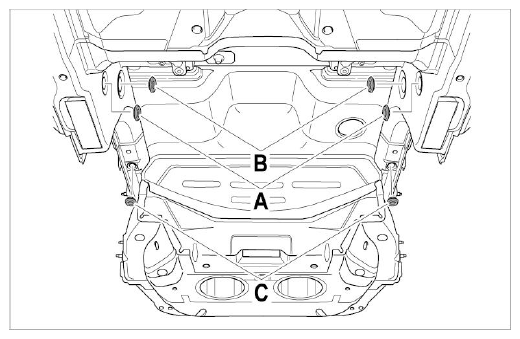

Fig 1: Identifying Bottom Of Front Of Vehicle Plugs
G09831638Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Rubber grommet hole Ø 20 mm
  2. Rubber grommet hole Ø 30 mm
  3. Plug hole Ø 20 mm
