Tailored Blanks

The indicated body parts are made by welding together plates of different thicknesses and characteristics and then deep-drawing these parts. In their crash behavior, these body parts are characterized by their high energy absorption.

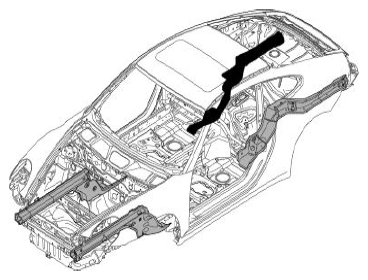

Fig 1: Identifying Tailored Blanks
G09831629Courtesy of PORSCHE CARS NORTH AMERICA, INC.
