Removing rear lid hinge

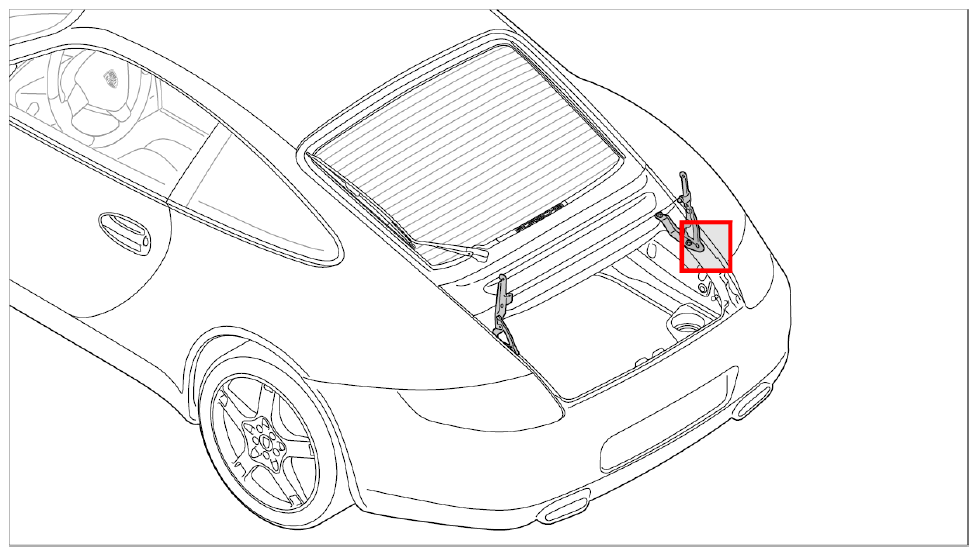

Fig 1: Overview Of Lid Hinge

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• If the rear lid hinge fails to work properly, it can be replaced without having to remove the rear lid. In such cases, a second person is required to hold the lid open during the repair process.

1. Unscrew fastening screws -1-  .

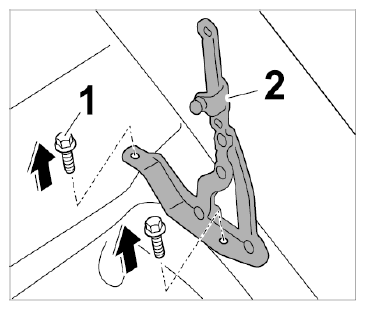

   Fig 2: Removing Lid Hinge

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove the hinge -2-  .
