Installing rear lid hinge

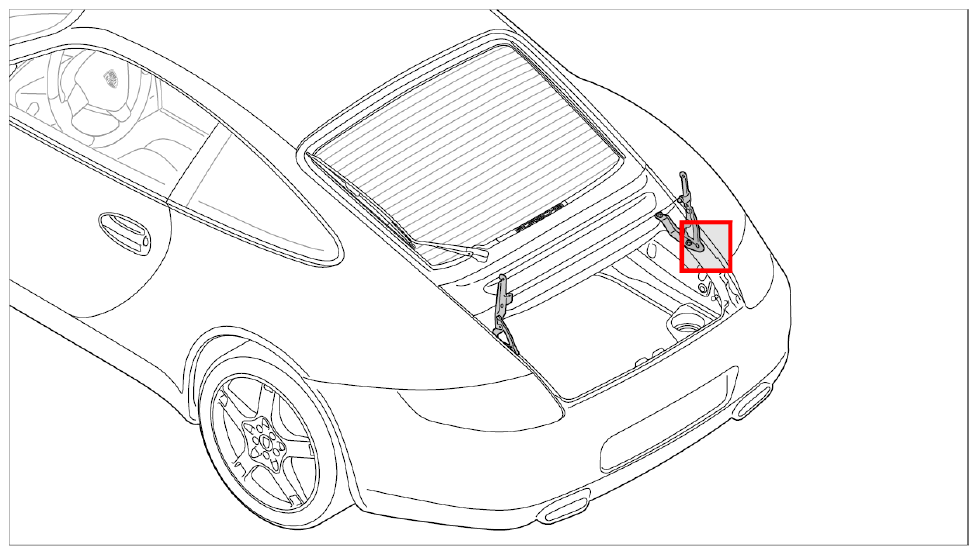

Fig 1: Overview Of Lid Hinge

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roughly align the hinge -2- according to the old attachment points.

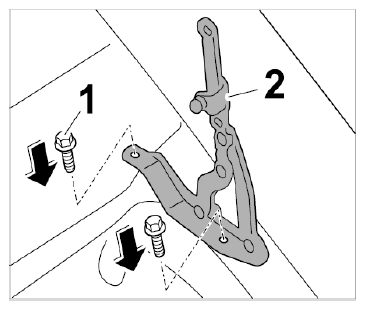

Fig 2: Installing Lid Hinge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws (body side) M6 x 16 -1- and tighten → : 7.1 ftlb. .
