Removing adjusting element

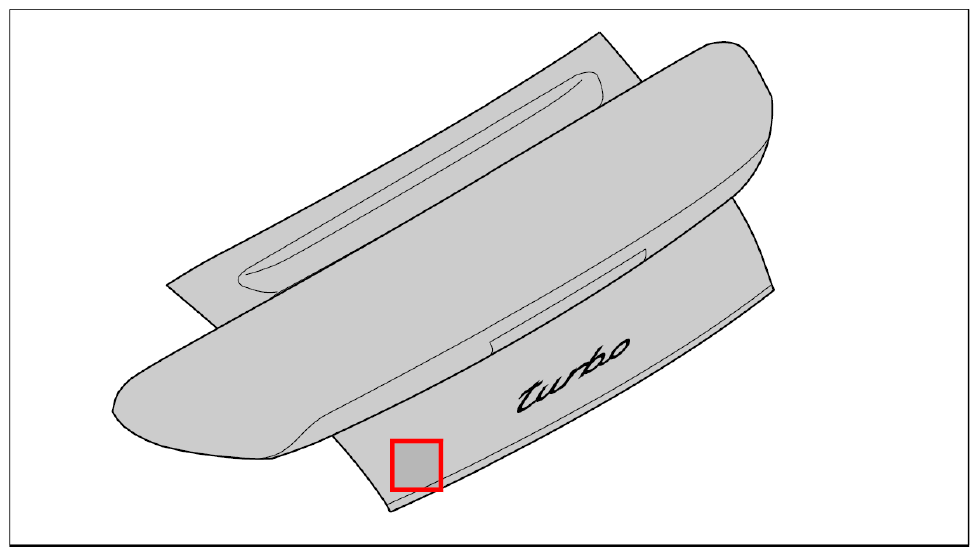

Fig 1: Overview Of Rear Lid
G09824133Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew rubber buffer -1-  and unclip collar -2-  .

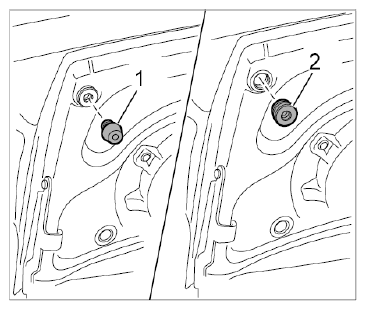

    Fig 2: Identifying Rubber Buffer And Unclip Collar
    G09824134Courtesy of PORSCHE CARS NORTH AMERICA, INC.
