Removing wire harness for rear lid

  1. Unclip wire harness using a plastic wedge -arrow A-  and remove it -arrow B-  .

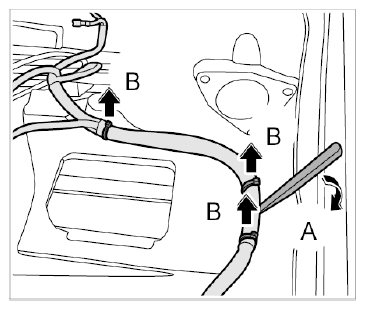

    Fig 1: Removing Wire Harness For Rear Spoiler
    G09824146Courtesy of PORSCHE CARS NORTH AMERICA, INC.
