Removing fan motor

  1. Disconnecting electric line

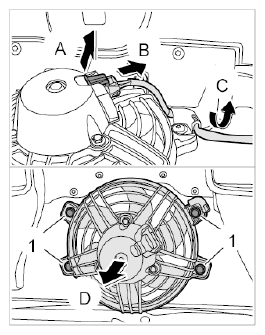

    Fig 1: Removing Fan Motor From Rear Lid
    G09824145Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Release the connector -Arrow A-  and pull it off -Arrow B-  .
    2. 1.2. Take the line out of the holder -Arrow C-  .
  2. Unscrew the fastening screws -1-  and take out the fan motor -Arrow D-  .
