Removing adjusting element

  1. Unscrew rubber buffer -1-  and unclip the collar -2-  .

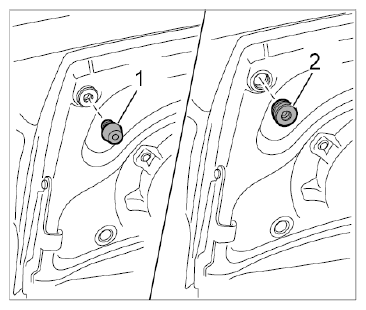

    Fig 1: Identifying Rubber Buffer And Collar
    G09824143Courtesy of PORSCHE CARS NORTH AMERICA, INC.
