Installing spoiler lip

Information

Clean bonding surface to remove any dust and grease.

Information

Only when re-using the spoiler lip.

1. Affix adhesive tape to the underside of the spoiler lip according to the contours.

   To ensure that the protective film can be pulled off when fitting the spoiler lip:

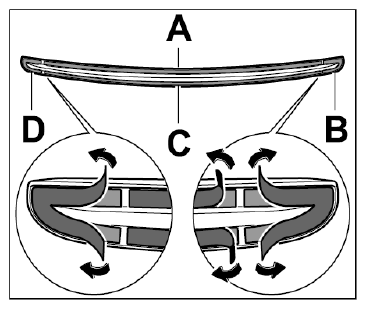

   Pull off approx. 10 to 15 mm of the protective film at the end of all pieces of adhesive tape -A, B, C, D-  and fold towards the outside of the spoiler lip -arrows-  .

   Fig 1: Preparing Spoiler Lip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

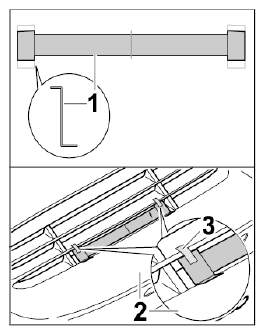

2. Fold spoiler lip template -1-  as required and position it on the rear ventilation slot on the rear lid -2-  .
   Fig 2: Preparing Rear Lid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Secure spoiler lip template -1-  at the front edge of the rear lid with adhesive tape -3-  so that it cannot slip out of place or fall (into the ventilation slot) on the rear lid -2-  .

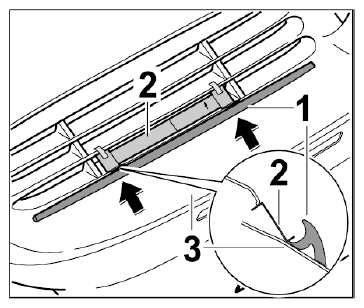

4. Place spoiler lip -1-  on the angled edges of the template -2-  (-arrows-  ) and align symmetrically with respect to the rear lid -3-  .
   Fig 3: Aligning Spoiler Lip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

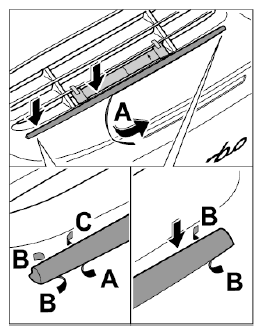

5. Stick on spoiler lip.
   Fig 4: Sticking On Spoiler Lip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 5.1. Carefully pull protective film off the adhesive tape on the spoiler lip, starting in the "rear edge" area -A-  .
   2. 5.2. Check the position of the spoiler lip with respect to the rear lid and adjust it if necessary by pressing on it. Lightly press the spoiler lip on in the "rear edge" area.
   3. 5.3. Carefully pull off protective film on adhesive tape at the ends (left/right) of the spoiler lip -B-  and remove the template.
   4. 5.4. Carefully pull protective film off the adhesive tape on the spoiler lip in the "front edge" area -C-  .
   5. 5.5. Press spoiler lip completely onto the rear lid -arrows-  .
