Installing fan motor

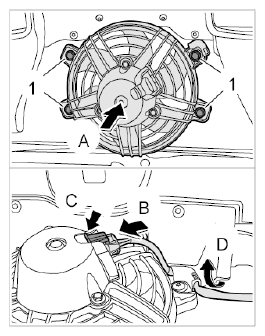

- Place the fan motor in installation position -Arrow A-
and secure with the fastening screws -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Push on connector -Arrow B-
until the locking lug -C-
is felt to engage.
- Insert the line into the holder -Arrow D-
.
