Installing rear lid: Notes

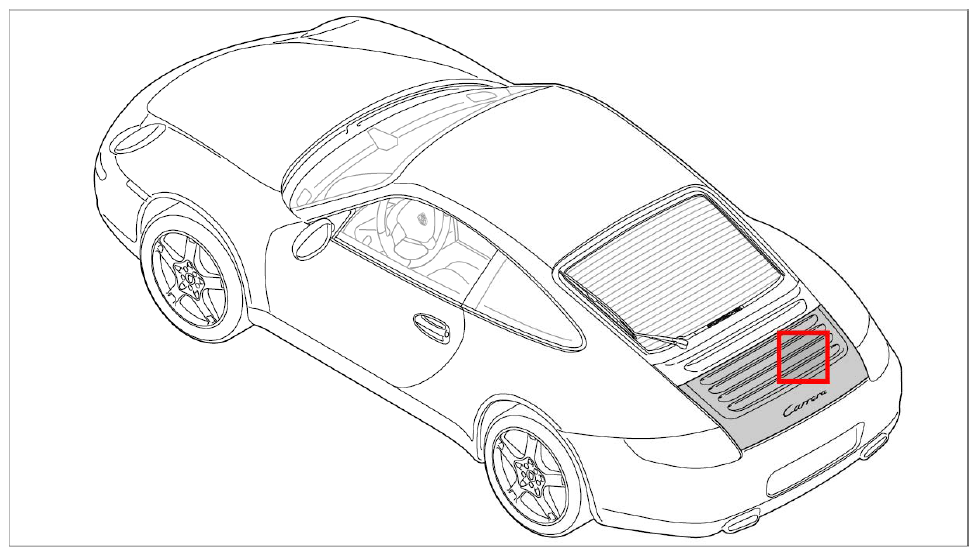

Fig 1: Overview Of Rear Lid
G09824129Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Mount the rear lid -2-  with the help of a second person.

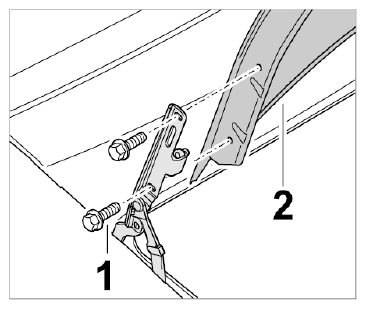

    Fig 2: Installing Rear Lid
    G09824130Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw in the fastening screws -1-  until they just make contact.
  3. Adjust rear lid. → WM 559015 Adjusting rear lid
  4. Tighten fastening screws M6 x 16 -1-  . Tightening torque → : 7.1 ftlb.
