Locking wiring harness on rear lid

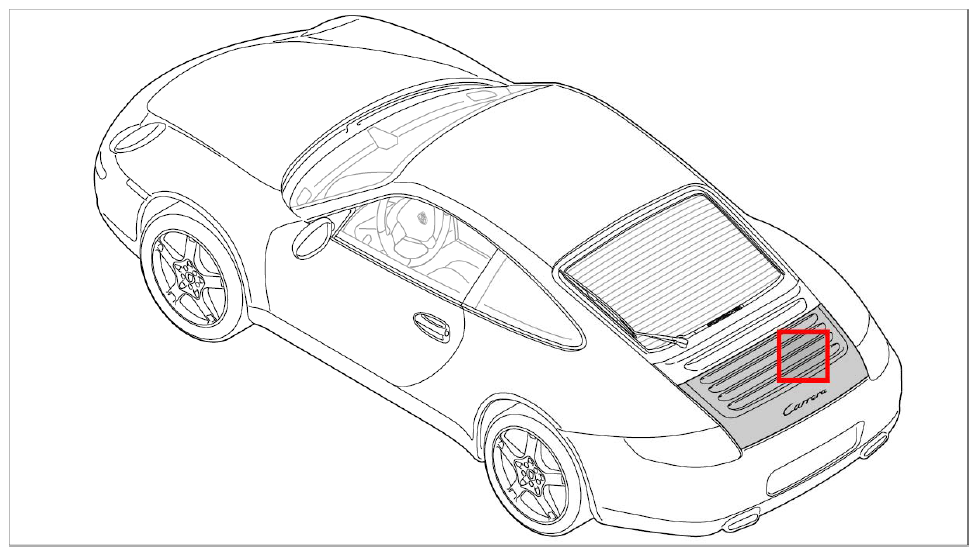

Fig 1: Overview Of Rear Lid
G09824131Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Push together electrical plug connection -1- -arrow A-  until locking tab is felt to engage.

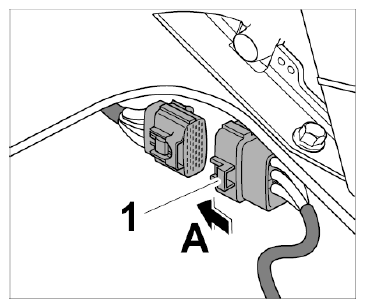

    Fig 2: Locking Wiring Harness On Rear Lid
    G09824132Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clipping wiring harness into place
