Adjusting rear lid in X and Z direction

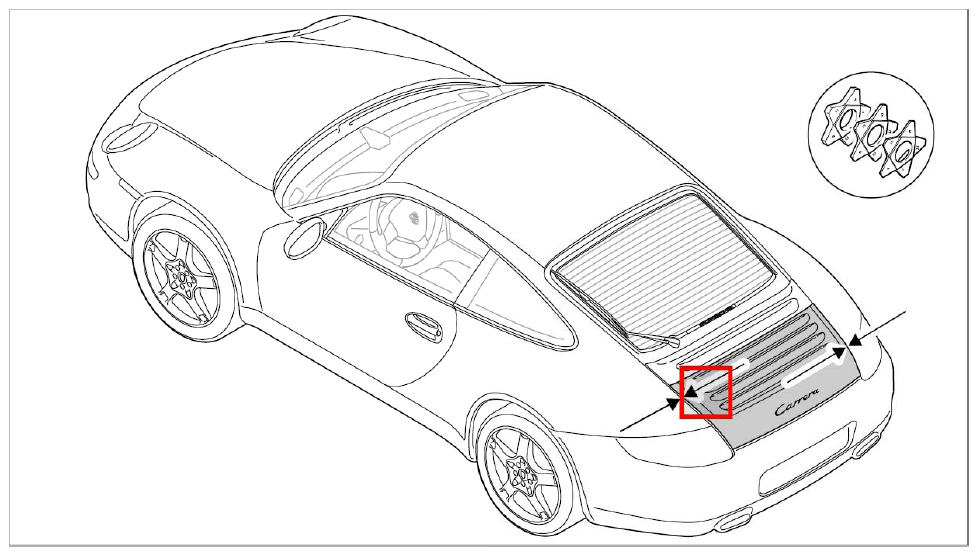

Fig 1: Overview Of Adjusting Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Set gap dimensions on lid and accessories in accordance with the gap specifications.
• Given a clearance in the opening that is too great or too small, the accessories must be centred with respect to the body.
• Ensure that the gaps do not run in a wedge-shaped fashion or do not narrow at local points.
• The given values are guidelines, which should be observed as far as possible.
• The guidelines apply to repair and assembly work.
• Use star gauges to check the gap dimensions. Star gauges for body gap dimensions NR.127-1

1. Check gap dimensions of rear lid. → 5000IN DIAGRAM - BODY GAP DIMENSIONS
2. Undo fastening screw -1-  on both sides of the rear lid -2-  .

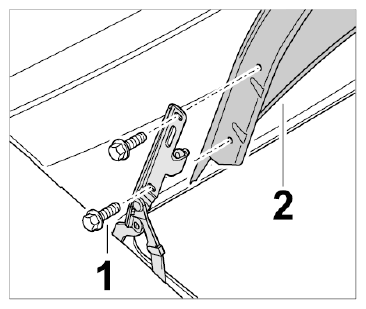

   Fig 2: Adjusting Rear Lid In X And Z Direction

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
