Removing rear upper part of lid lock

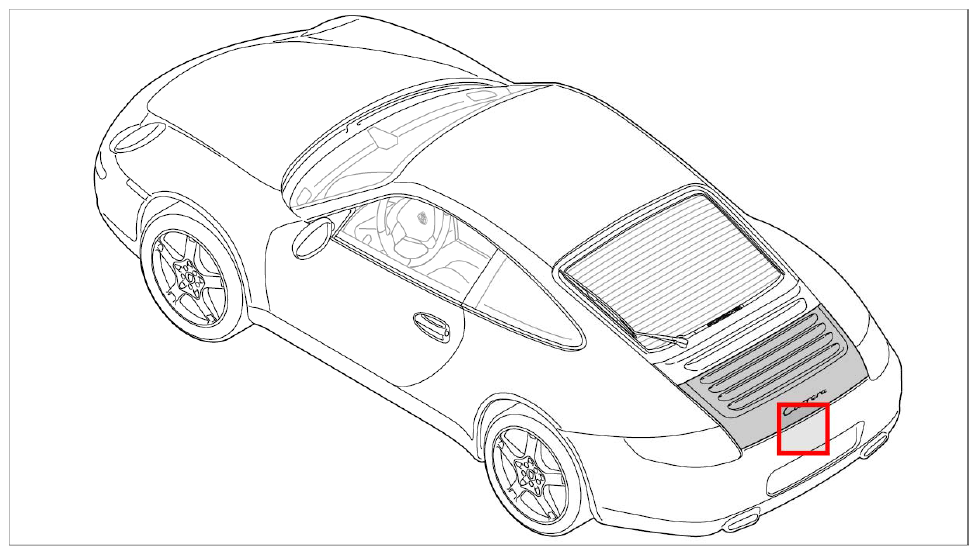

Fig 1: Identifying Installation Position Of Upper Part Of Rear Lid Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Mark installation position of upper part of lid lock with respect to the lid.

1. Open the rear lid.

   Information

   New fastening screws must be used following removal.

2. Unscrew -1-  fastening screws and remove upper part of lid lock -2-  .

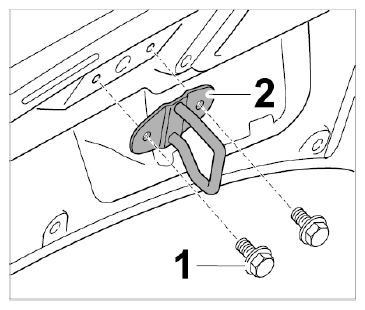

   Fig 2: Removing Rear Upper Part Of Lid Lock

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
