Installing rear upper part of lid lock

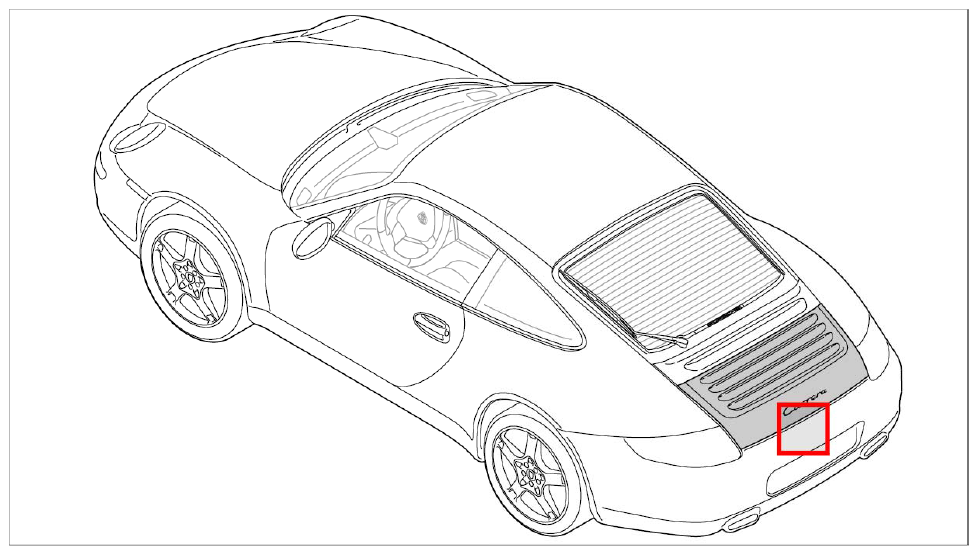

Fig 1: Identifying Installation Position Of Upper Part Of Rear Lid Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Position upper part of rear lid lock -2-  and tighten the fastening screws -1-  slightly.

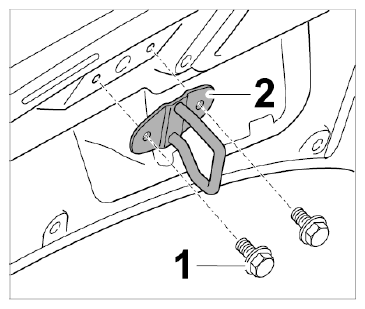

   Fig 2: Installing Rear Upper Part Of Lid Lock

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Adjust upper part of lid lock -2-  in relation to the lid according to the noted position, if necessary, determine left and right gap.
3. Tighten fastening screws -1-  . → : 9.7 Nm (7.0 ftlb.)
4. Check lid function.
