Disconnecting electrical plug connection

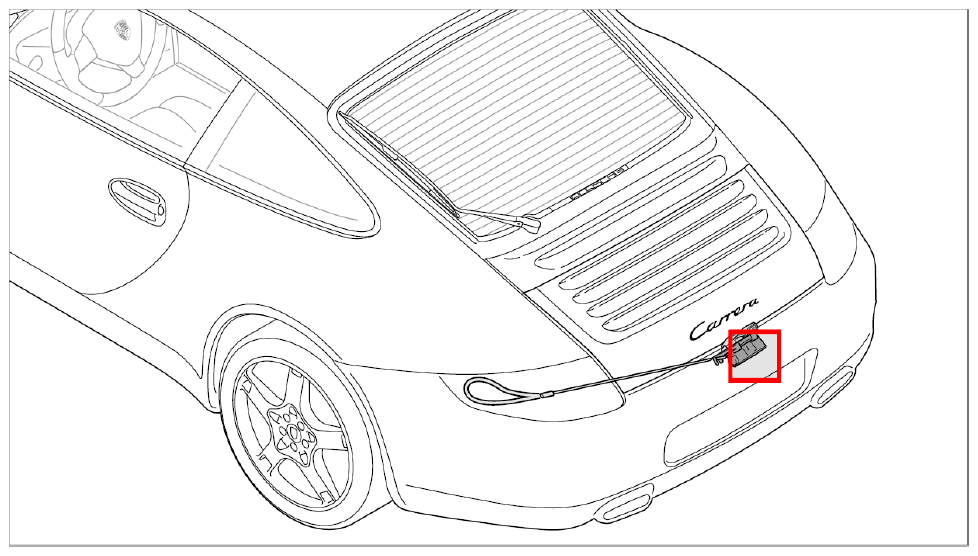

Fig 1: Identifying Lower Part Of Lid Lock At Rear
G09824104Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Separate electrical plug connection -1-  for lid release by pressing the locking tab -arrow A- -arrow B-  .

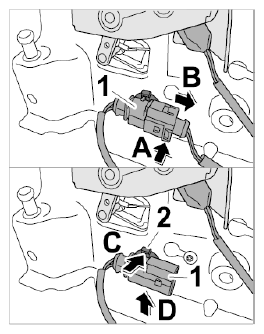

    Fig 2: Disconnecting Electrical Plug Connection
    G09824105Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press locking tab on fastening clip -2- -arrow C-  and press plug up and out -arrow D-  .
