Locking electrical plug connection

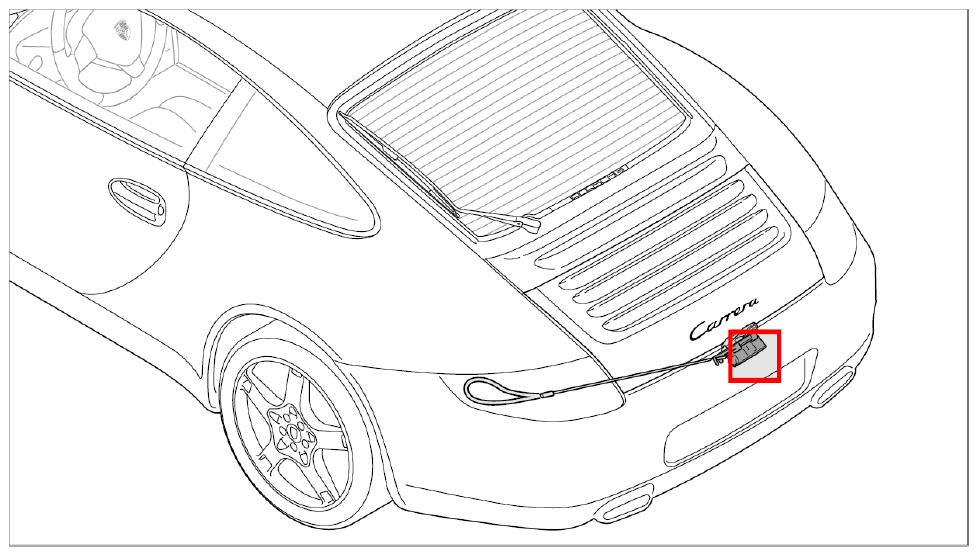

Fig 1: Identifying Lower Part Of Lid Lock At Rear
G09824114Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Lock plug -1-  on fastening clip -2-  until locking tab is felt to engage -arrow A-  .

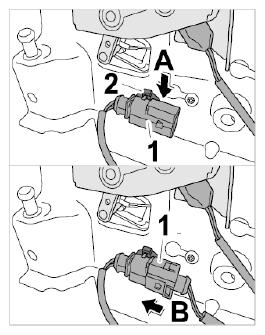

    Fig 2: Locking Electrical Plug Connection
    G09824115Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Lock electrical plug connection -1-  for lid release until locking tab is felt to engage -arrow B-  .
