Installing the emergency release cable

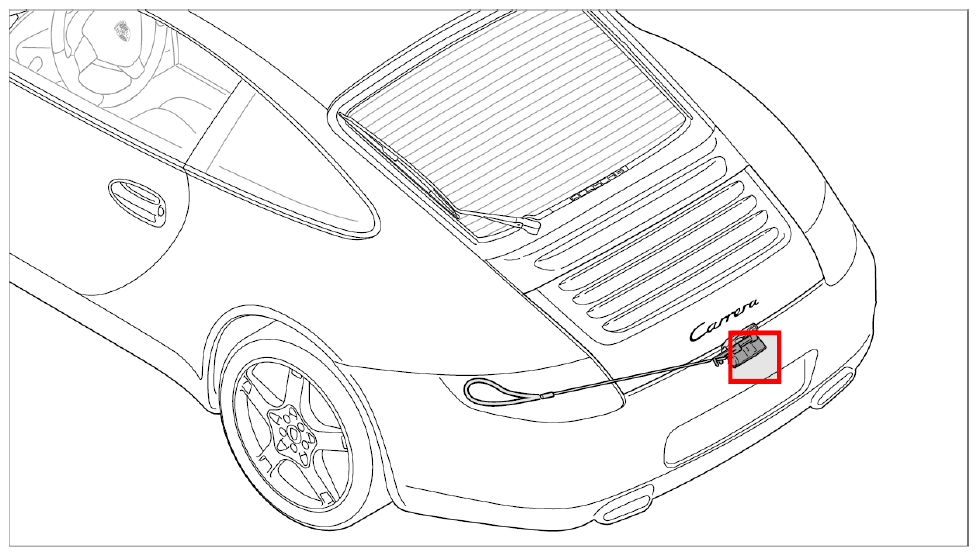

Fig 1: Identifying Lower Part Of Lid Lock At Rear
G09824110Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position emergency release cable -2-  on lower part of lid lock at rear -3-  and secure using circlip -1-  .

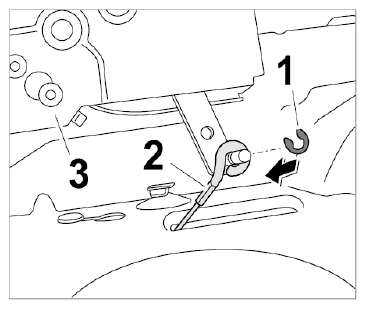

    Fig 2: Installing Emergency Release Cable
    G09824111Courtesy of PORSCHE CARS NORTH AMERICA, INC.
