Installing release for rear lid

  1. Clip in switch for lid release with the locking tabs in the fastening ribs of the scuff plate -arrows-  so that they are felt to engage.

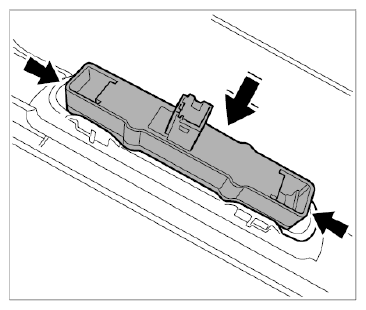

    Fig 1: Installing Lid Release Switch
    G09824080Courtesy of PORSCHE CARS NORTH AMERICA, INC.
