Installing switching element for filler flap

Installing switching element for filler flap

1. Engage switching element for filler flap into the emergency operation cable.
   Fig 1: Engaging Switching Element For Filler Flap Into Emergency Operation Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Insert switching element for filler flap into the slots on the holder. Ensure that the locking bolt of the filler flap switching element is positioned in the opening of the side section.

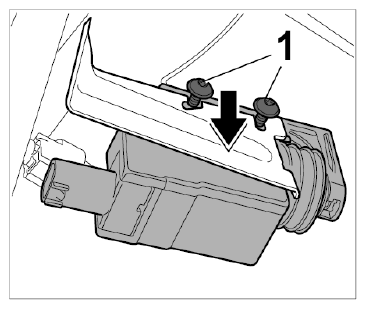

   Fig 2: Securing Filler Flap Switching Element To Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Secure the filler flap switching element with the two fastening screws -1-  .
4. Insert the connector until it is felt to engage.
   Fig 3: Connecting Switching Element Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Check operation of the filler flap switching element.
