Removing plastic hinge

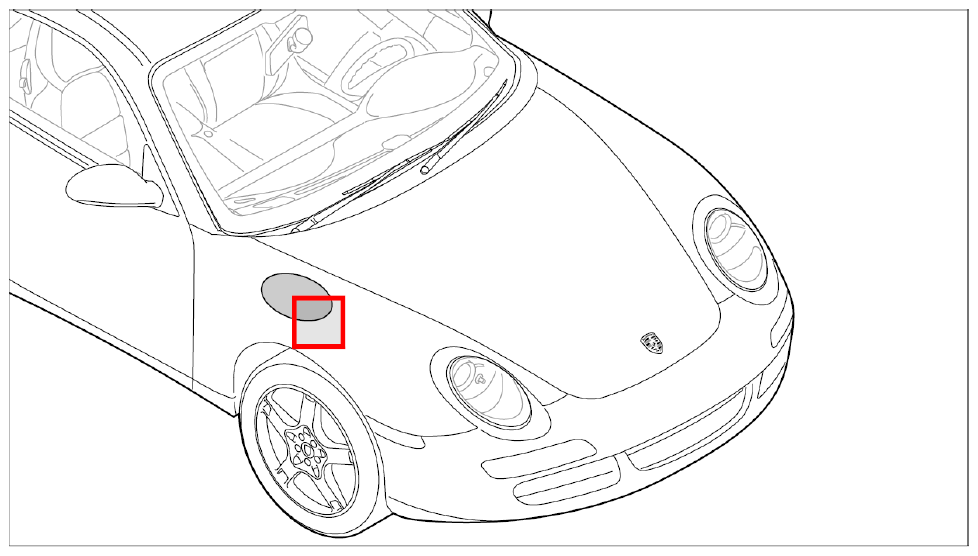

Fig 1: Overview Of Filler Flap

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert the disassembly tool disassembly tool, universal Nr.21 at the locking lugs on the left and right and lift via the locking lugs; remove the plastic hinge -1- in -arrowrichtung A- from the filler flap.

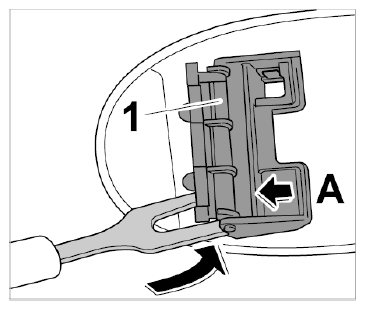

Fig 2: Removing Plastic Hinge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
