Removing filler flap: Notes

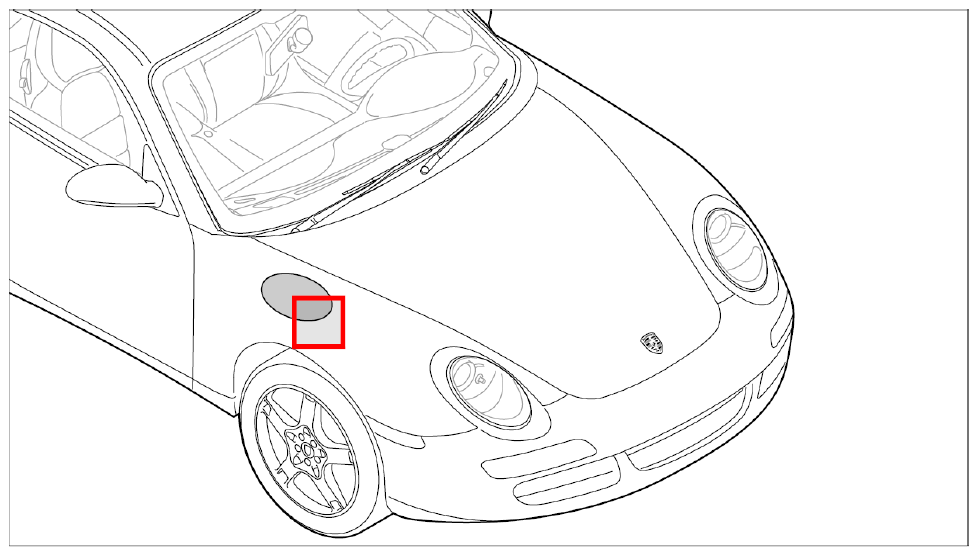

Fig 1: Overview Of Filler Flap

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Press the clip -A- on forwards from above with a narrow screwdriver.

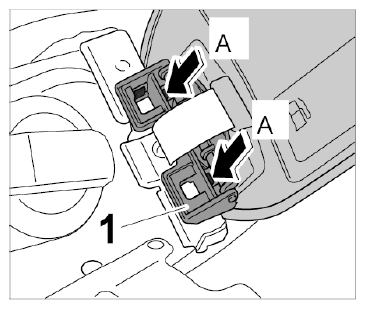

Fig 2: Removing Filler Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press fastening lug in -direction of arrow A- and hold.

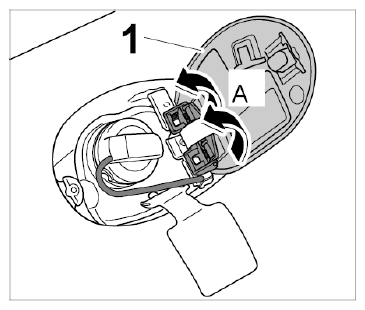

Fig 3: Pulling Off Filler Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull filler flap -1- carefully in an upward direction.
