Installing plastic hinge

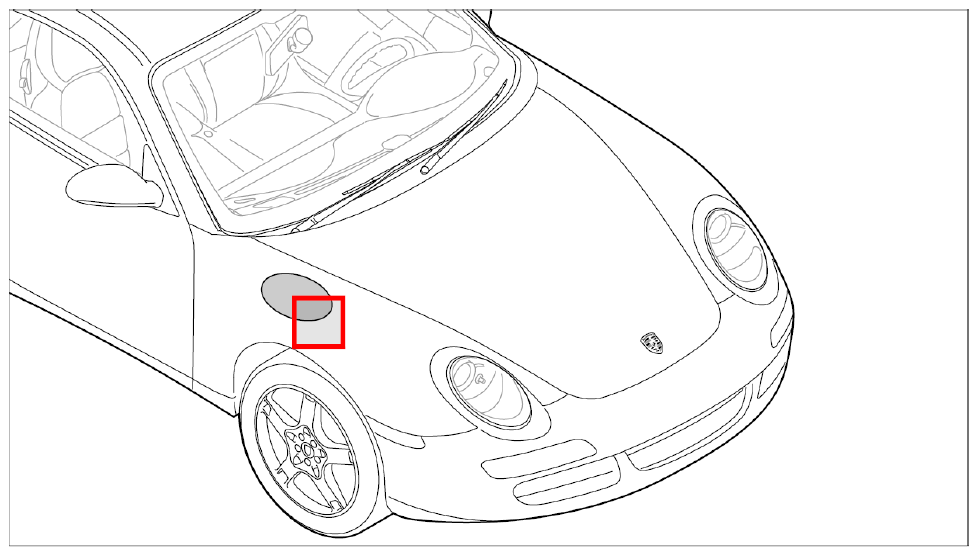

Fig 1: Overview Of Filler Flap
G09824067Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position the plastic hinge -1-  at the filler flap and push on in -direction of arrow A-  . The lugs must engage perceptively.

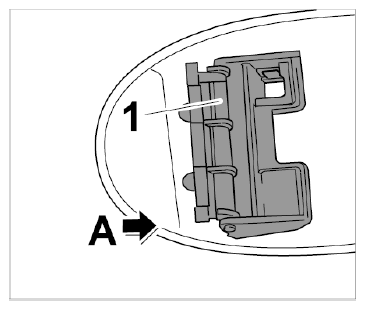

    Fig 2: Installing Plastic Hinge
    G09824068Courtesy of PORSCHE CARS NORTH AMERICA, INC.
