Removing front lid seal: Notes

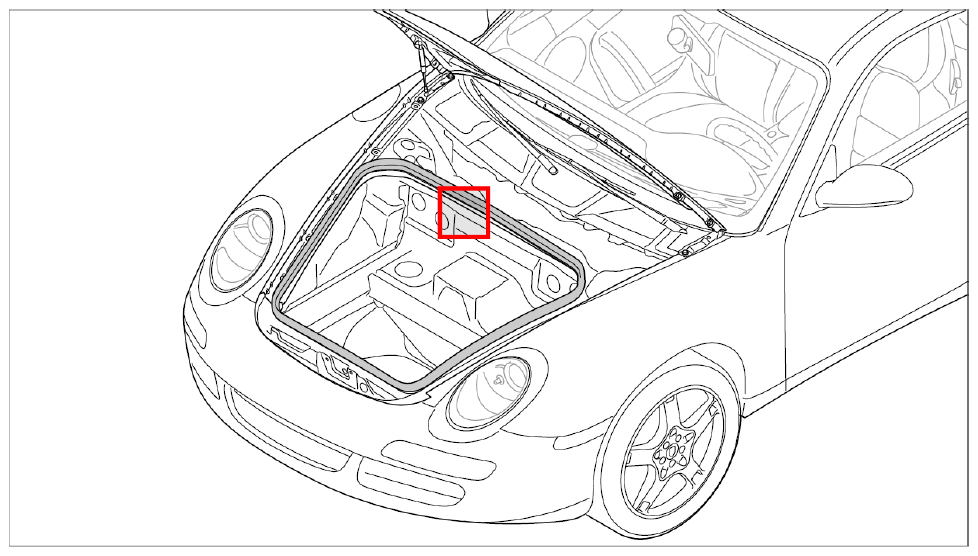

Fig 1: Overview Of Removing And Installing Front Lid Seal
G09824053Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Open front lid.

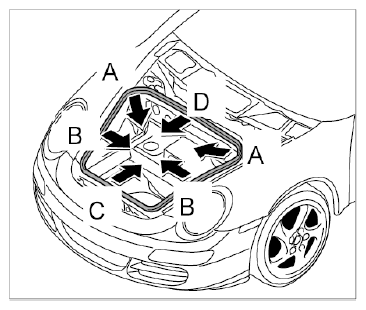

    Fig 2: Removing Front Lid Seal
    G09824054Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull the seal from the flanges at the corner pieces -A-  , wings -B-  , closing panel -C-  and plenum chamber cover -D-  .
