Mounting front lid seal

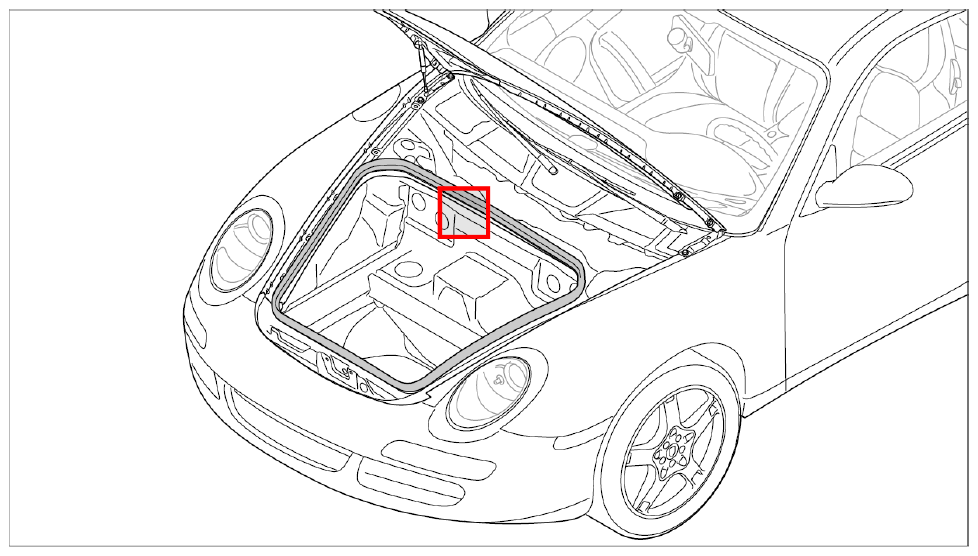

Fig 1: Overview Of Front Lid Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Before replacing seal, check the existing seal for signs of damage (tears, crushed areas, etc.). If there are signs of damage, the seal must be replaced.
• The seal is pressed onto the flange without any additional sealant.

1. Position the seal -1-  from above -A-  .

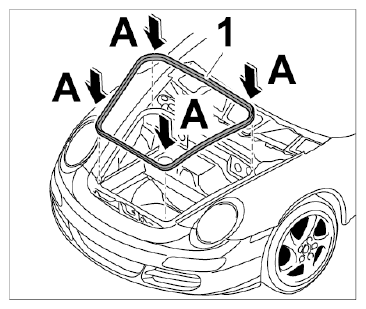

   Fig 2: Mounting Front Lid Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
