Removing front pneumatic spring on body

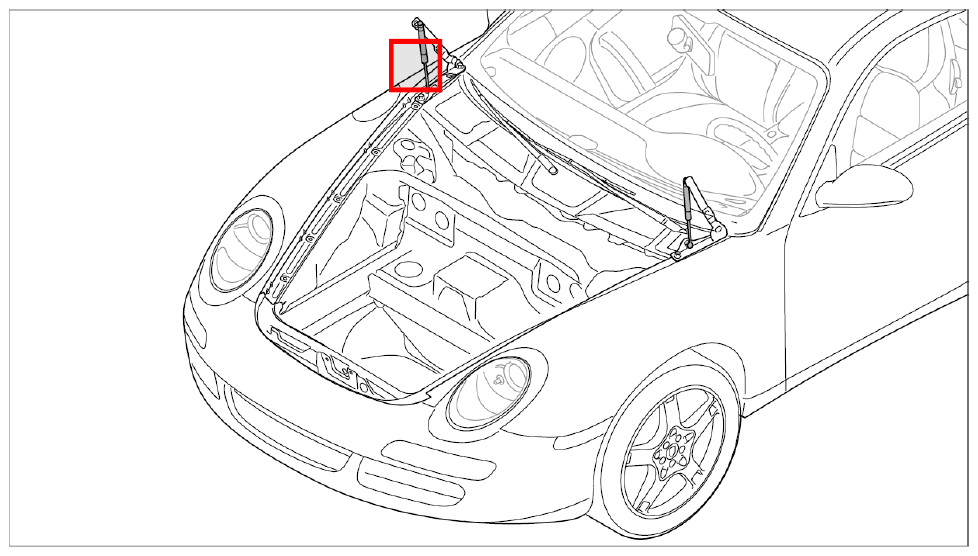

Fig 1: Overview Of Front Pneumatic Spring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gas-filled shock absorbers must be in idle state before removal.

→ Open the lid.

→ Secure the lid to prevent it from closing accidentally following removal of the gas-filled shock absorbers.

→ Do not use force to open the gas-filled shock absorbers because of their high internal pressure.

1. Open front lid.

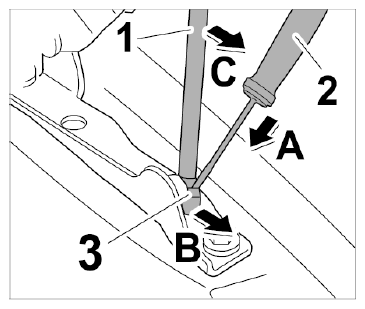

   Fig 2: Removing Front Pneumatic Spring On Body

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. A second person should hold the front lid to prevent it from closing accidentally.
3. Insert a screwdriver -2-  between the head of the pneumatic spring and the safety clip -3- -A-  .
4. Release the safety clip -3-  by levering the screwdriver -2-  towards the pneumatic spring -B-  . The safety clip remains in the head of the pneumatic spring.
5. Pull the pneumatic spring -1-  from the ball head -C-  .
6. Withdraw the screwdriver.
7. Remove pneumatic spring -1-  .
