Installing front pneumatic spring at lid end

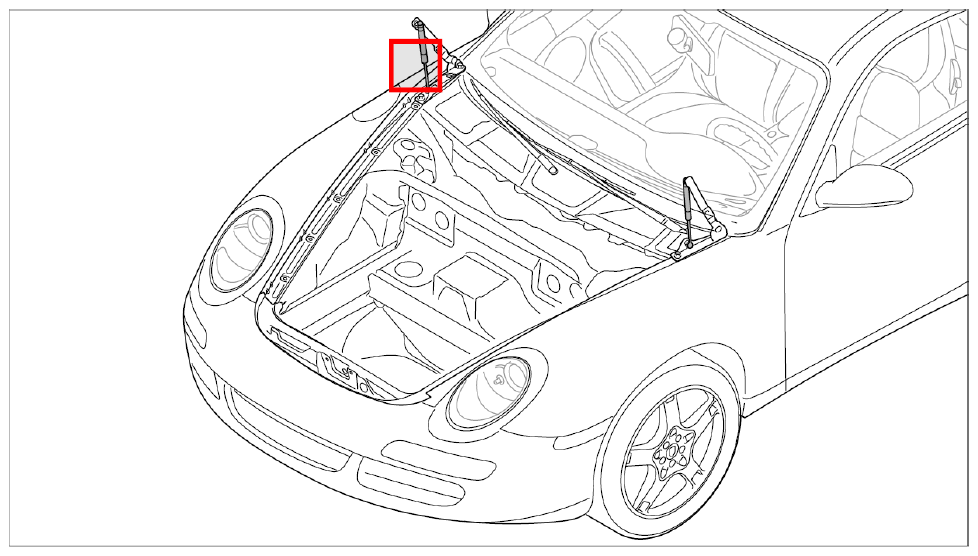

Fig 1: Overview Of Front Pneumatic Spring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Position pneumatic spring.
   Fig 2: Installing Front Pneumatic Spring At Lid End

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. A second person should hold the front lid to prevent it from closing accidentally.
3. Position pneumatic spring -1-  on the ball head and press on firmly. The pneumatic spring clicks audibly into place.
4. Check that the safety clips -2-  have engaged correctly; repeat procedure, if necessary.
5. Check pneumatic spring.
