Removing front lid hinge

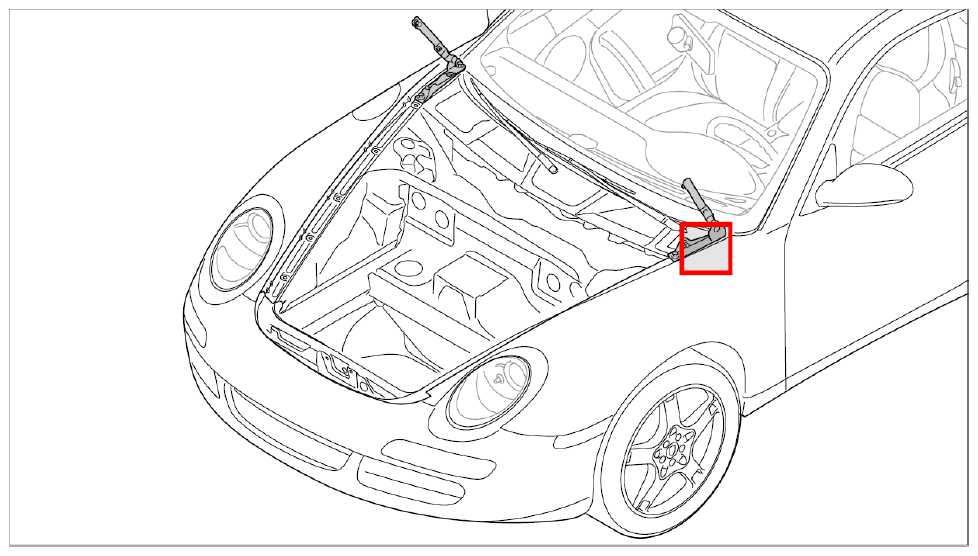

Fig 1: Overview Of Front Lid Hinge

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• If a front lid hinge fails to work properly, it can be replaced without having to remove the front lid. In such cases, a second person is required to hold the lid open during the repair process.

1. Unscrew fastening screws -1-  of front lid hinge -2-  and remove lid hinge.
   Fig 2: Removing Lid Hinge

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
