Install front lid hinge

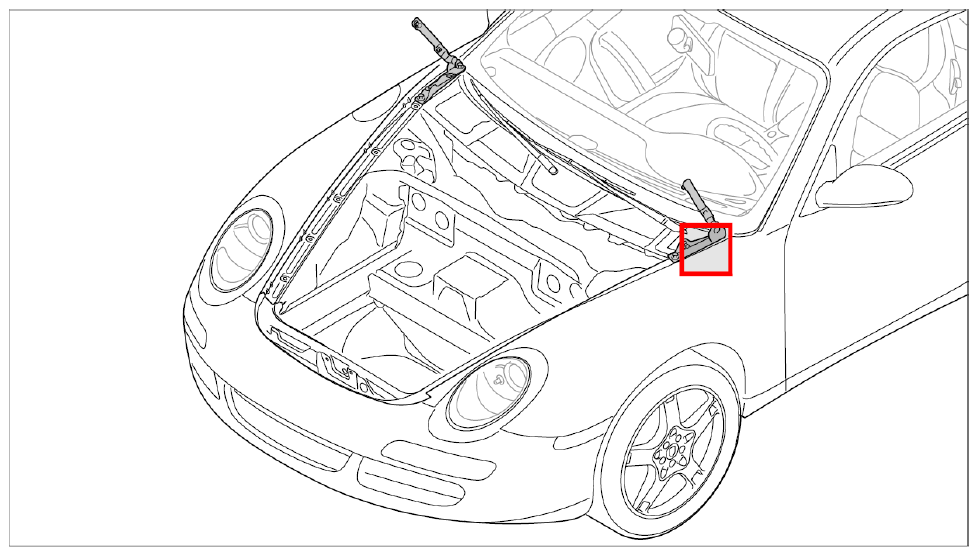

Fig 1: Overview Of Front Lid Hinge

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Align lid hinge -2- roughly to the body according to the old attachment points and tighten using the fastening screws -1- . Tightening torque → Final tightening: 9.7 Nm (ftlb.) (7.2)

Fig 2: Installing Lid Hinge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
