Installing rubber pad

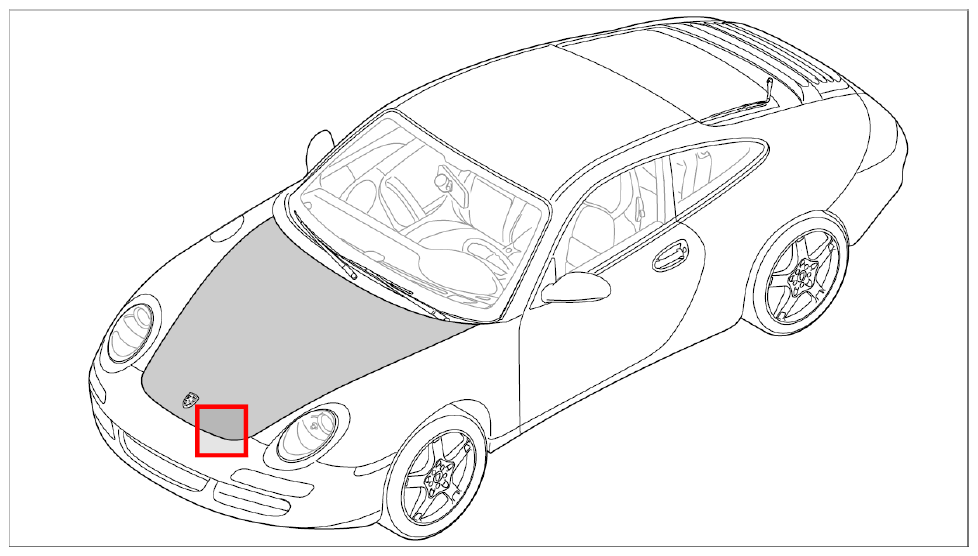

Fig 1: Overview Of Front Lid
G09824037Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Screw in rubber pad -1-  .

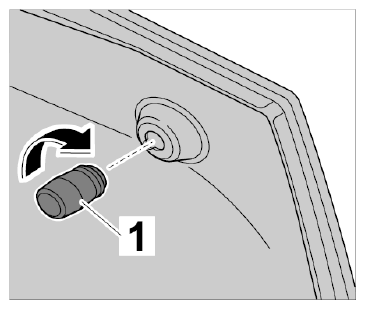

    Fig 2: Installing Rubber Pad
    G09824038Courtesy of PORSCHE CARS NORTH AMERICA, INC.
