Removing front lid

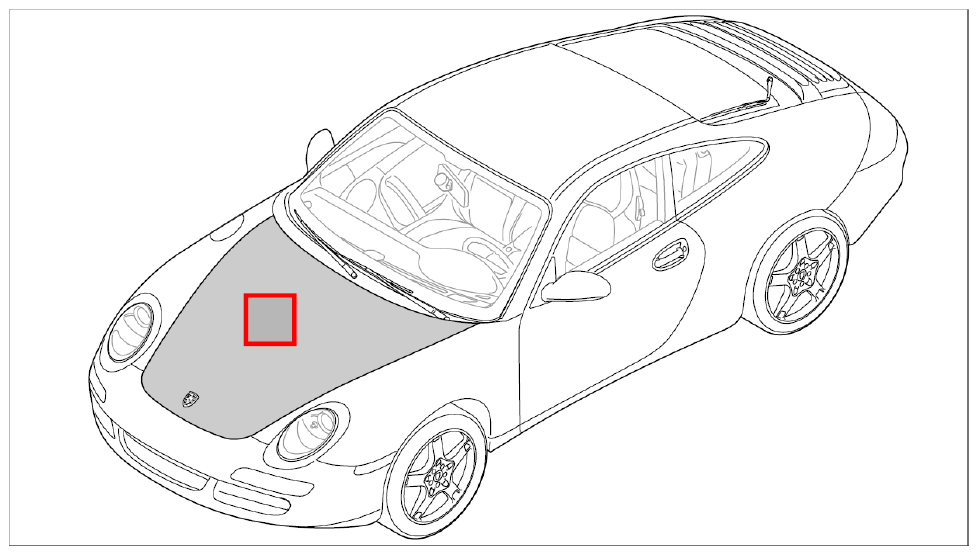

Fig 1: Overview Of Removing And Installing Front Cover
G09824029Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  from the front lid -2-  .

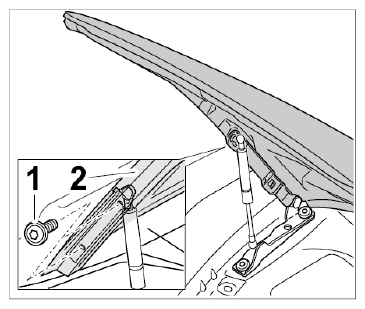

    Fig 2: Removing Front Lid
    G09824030Courtesy of PORSCHE CARS NORTH AMERICA, INC.
