Installing front lid

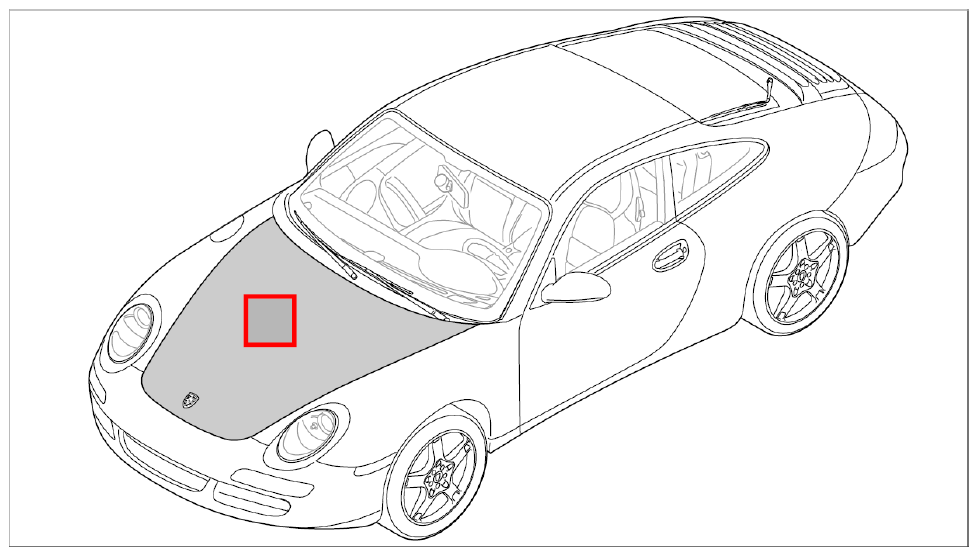

Fig 1: Overview Of Front Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

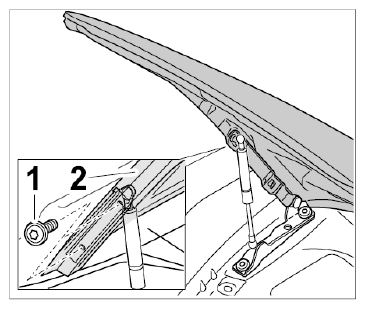

Position lid -2- at the left and right hinges and tighten using the fastening screws -1- . Tightening torque → Final tightening: 9.7 Nm (ftlb.) (7.2)

Fig 2: Installing Front Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
