Adjusting lid in X and Y direction

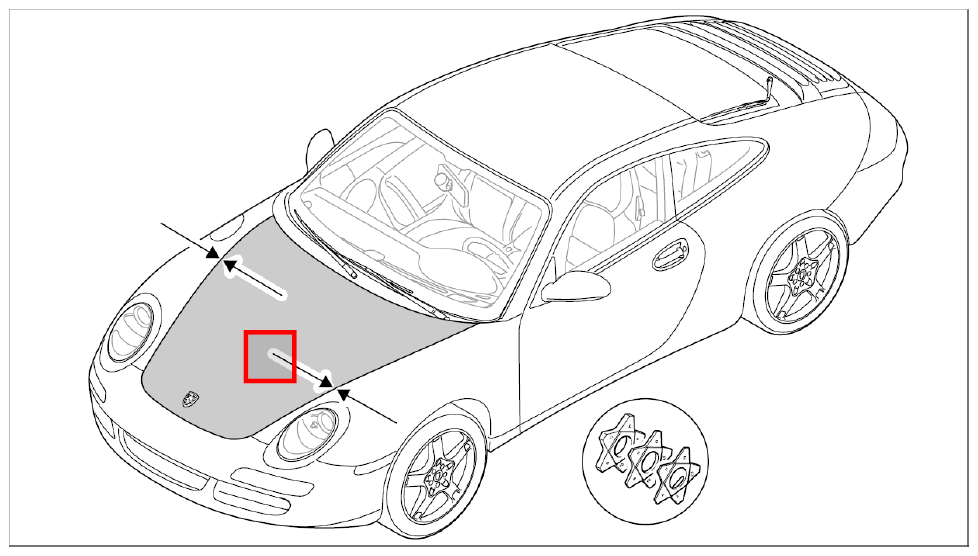

Fig 1: Overview Of Adjusting Front Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Use star gauges to set and measure the gap dimensions. Star gauges for body gap dimensions NR.127-1

1. Check gap dimensions on body. → 5000IN DIAGRAM - BODY GAP DIMENSIONS

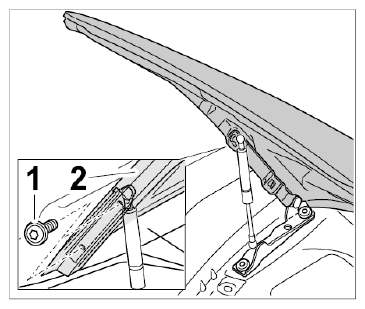

   Fig 2: Adjusting Lid In X And Y Direction

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Undo fastening screw -1-  on both sides on front cover -2-  .
