Removing upper part of front lid lock

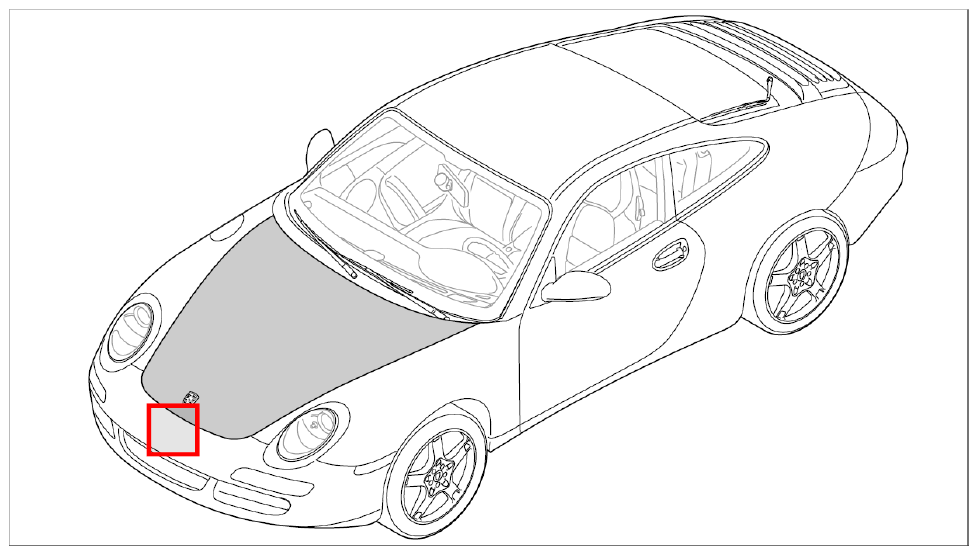

Fig 1: Identifying Installation Position Of Front Lid Lock Upper Part

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Mark installation position of upper part of lid lock with respect to the lid.

Information

New fastening screws must be used following removal.

1. Unscrew -1-  fastening screws and remove upper part of lid lock -2-  .

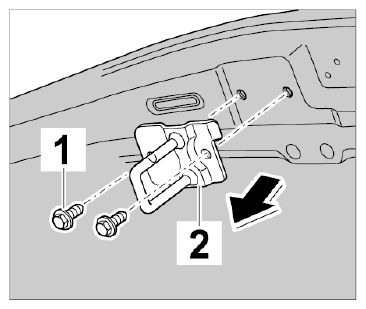

   Fig 2: Removing Upper Part Of Lid Lock

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
