Installing upper part of front lid lock

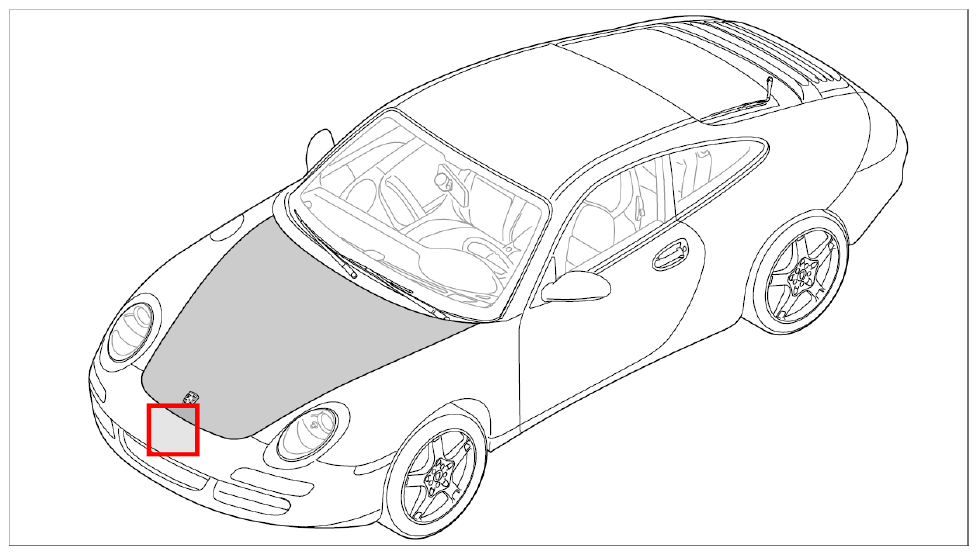

Fig 1: Identifying Installation Position Of Front Lid Lock Upper Part
G09824020Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position upper part of front lid lock -2-  and tighten the fastening screws -1-  slightly.

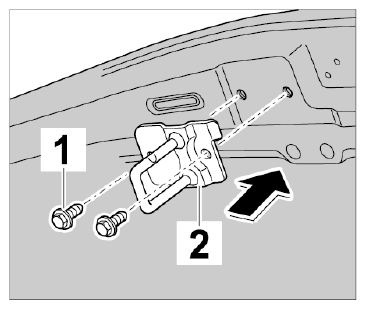

    Fig 2: Installing Upper Part Of Front Lid Lock
    G09824021Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Adjust the upper part of lid lock -2-  in relation to the lid according to the noted position; determine gap left to right, if necessary.
  3. Tighten fastening screws -1-  . → : 9.7 Nm (7.0 ftlb.)
  4. Check lid function.
