Removing lower part of lid lock

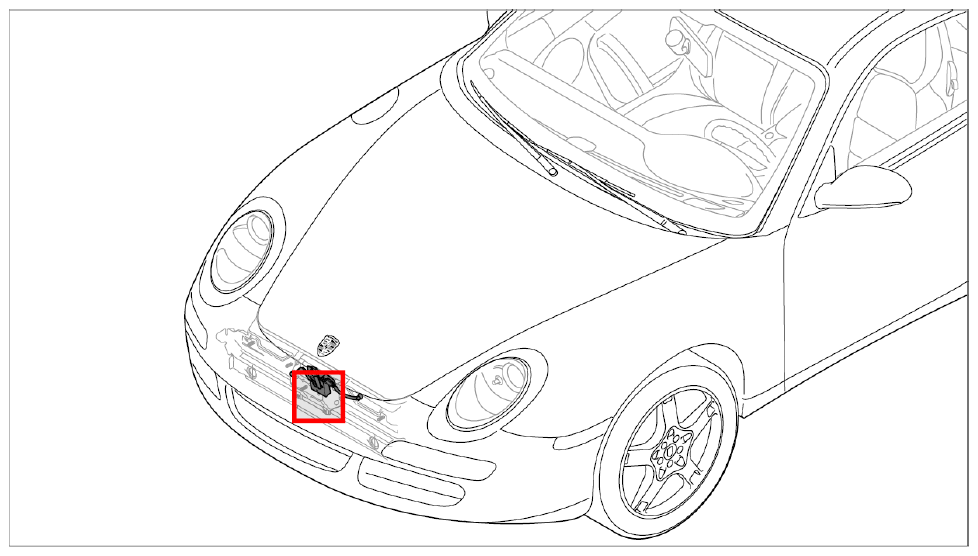

Fig 1: Overview Of Front Lower Part Of Lid Lock
G09824004Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -2-  on lower part of lid lock -3-  and remove cover panel -4-  .

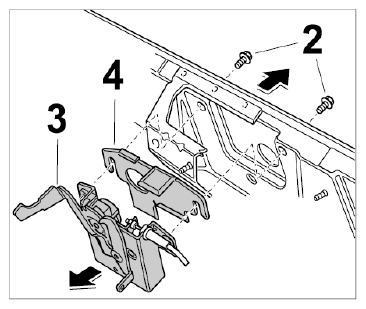

    Fig 2: Removing Lower Part Of Lid Lock
    G09824005Courtesy of PORSCHE CARS NORTH AMERICA, INC.
