Removing lid-release cable

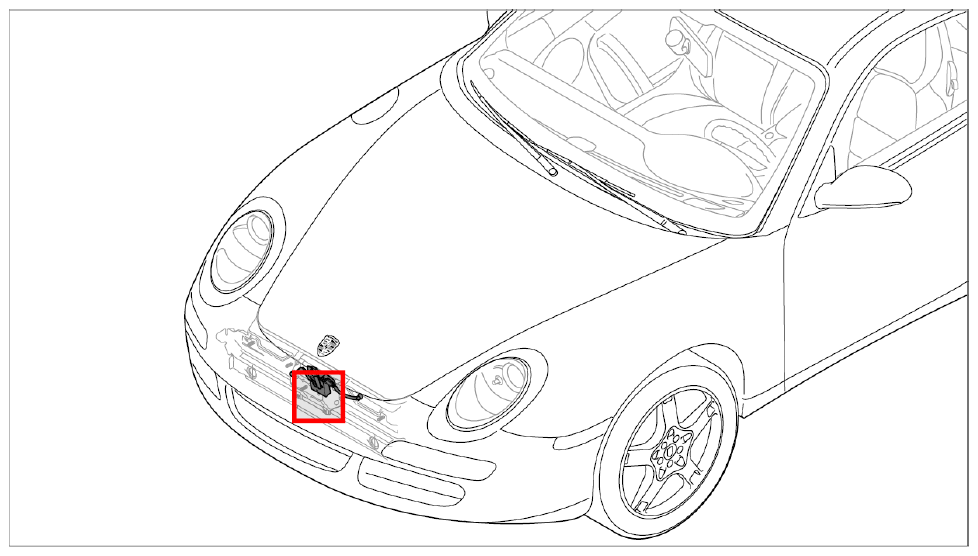

Fig 1: Overview Of Front Lower Part Of Lid Lock
G09824006Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Disengage lid-release cable -5-  by moving release -6-  in direction of arrow on lower part of lock at the front -3-  .

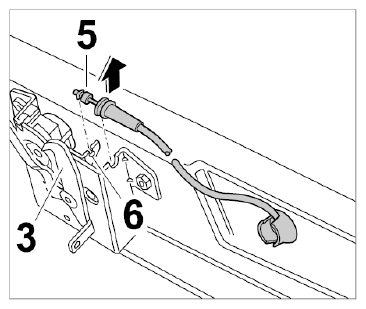

    Fig 2: Removing Lid-Release Cable
    G09824007Courtesy of PORSCHE CARS NORTH AMERICA, INC.
